SPECIFICATIONS

4G Pet Collar Tracker Anti-Lost Pet Tracker Smart Collar Device Waterproof Remote Control APP Rechargeable for Dog Cat Animals
Feature:
1. Multiple Positioning Mode: GPS+AGPS+Wifi+Beidou+LBS. 4G band - CAT1, LTE-FDD: B1/B3/B5/B8, LTE-TDD: B34/B38/B39/B40/B41. Support 4G networks of China Mobile, China Unicom and China Telecom.
2. Location Query: The user's specific location can be queried through mobile phone or computer. Draw an area on the map with the equipment as the center, and call the police immediately when the area is out. Query the running history of the device within three months anytime and anywhere.
3. SOS Call for Help: In case of emergency, press the SOS key, and send a call for help and information to the guardian. Add/view the supervision number (SOS, father, mother)/white list/friends (50 in total) through the guardian's mobile phone APP.
4. Two-way Call: When the phone book number calls, it can talk with the user. Smart power saving, turn off/on GPS and data upload within the time range. If the device is lost, you can find the device through the mobile APP.
5. Remote Operation: Set the no-disturbance time range through the guardian's mobile phone APP, and the device will shield incoming calls. The device shutdown/restart/device alarm function can be realized through the guardian mobile phone APP. Mobile client/computer service platform/GZH, multiple control mode.


Main functions: support: real-time GPS/AGPS/WIFI/4G Cat 1/GSM positioning, SOS call for help, call family number, electronic fence warning and reminder, historical track query, power saving mode.
4G band - CAT1 LTE-FDD: B1/B3/B5/B8, LTE-TDD: B34/B38/B39/B40/B41
Data:
LTE: max 10 Mbps (DL)/max 5 Mbps (UL)
EDGE: 236.8 kbps (DL) max/236.8 kbps (UL) max
GPRS: 85.6 kbps (DL) max/85.6 kbps (UL) max
GNSS chip: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS
Working ambient temperature: - 20 ℃ -+70 ℃
Working environment humidity: 20% - 80% RH
SIM card: Nano SIM card holder

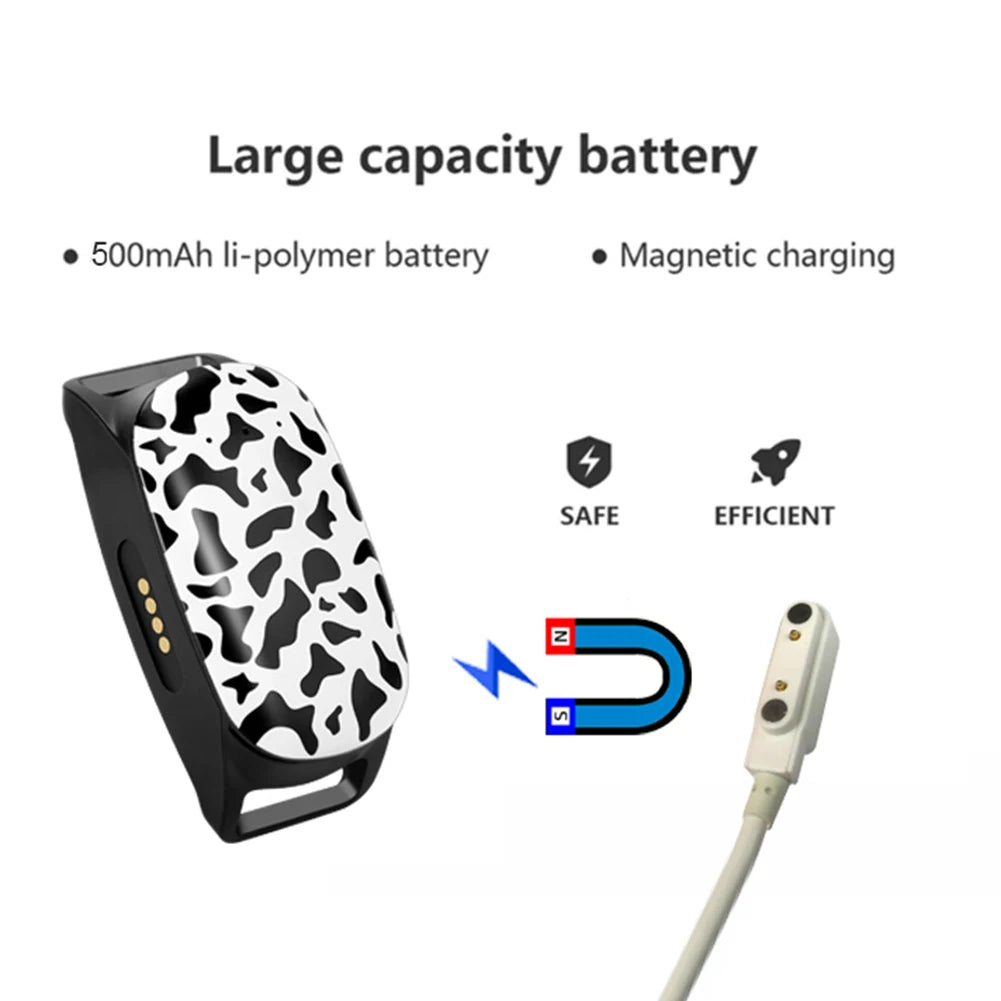

Battery: 3.7V 500mAh
Average standby current: less than 5mA (determined by connection mode)
Standby time: determined by battery capacity and connection mode
Working voltage: 3.5-4.2V (automatic shutdown at 3.4V low power)
Charging current: charging 5V 500mAh (current can be set according to different battery capacity)
I/O interface: Micro 5pin
Horn: 0916 specification AAC
Sensor: 3D G-Sensor
GPS positioning accuracy: within 10m
WIFI positioning accuracy: within 50m
Network positioning accuracy: 50-200 meters (depending on network conditions)
Speed accuracy: 0.1 m/s
GPS positioning time: Cold start - 38s (Open sky) Hot start - 2s (Open sky) Specific time will vary depending on the environment
4G antenna: PIFA antenna
GPS antenna: external passive high-performance 15X15 ceramic antenna
PS: It can also be used by operators that support the above frequency bands, 4G module
Size: About 62x31x17mm/2.44x1.22x0.66inch
Weight: 130g


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-2cm measuring deviation due to manual measurement.
